Detalles del producto
Lugar de origen: PORCELANA
Nombre de la marca: SHANAN
Certificación: CE, ISO
Número de modelo: El SAMD-500
Documento: Metal Detector.pdf
Pago y términos de envío
Cantidad de orden mínima: 1 set
Precio: Negociable
Detalles de empaquetado: caja
Tiempo de entrega: 15 días de trabajo
Condiciones de pago: T/T
Capacidad de la fuente: 100 set/mes
Material: |
acero inoxidable |
Línea de producción de conexión: |
Apoyo |
Rechazar opcional: |
Push varilla y caída de la aleta |
Opcional: |
Escoge digital o analógica |
Cinta transportadora: |
Transportador de cadena modular |
Estructura de máquinas: |
Estructura completa tomas de 304 inoxidables |
Garantía: |
Garantía de 12 meses |
Tamaño del túnel: |
Las medidas de ensayo se aplicarán en el caso de los vehículos de las categorías M1, M2 y M3. |
Certificación: |
CE |
de: |
PORCELANA |
Material: |
acero inoxidable |
Línea de producción de conexión: |
Apoyo |
Rechazar opcional: |
Push varilla y caída de la aleta |
Opcional: |
Escoge digital o analógica |
Cinta transportadora: |
Transportador de cadena modular |
Estructura de máquinas: |
Estructura completa tomas de 304 inoxidables |
Garantía: |
Garantía de 12 meses |
Tamaño del túnel: |
Las medidas de ensayo se aplicarán en el caso de los vehículos de las categorías M1, M2 y M3. |
Certificación: |
CE |
de: |
PORCELANA |

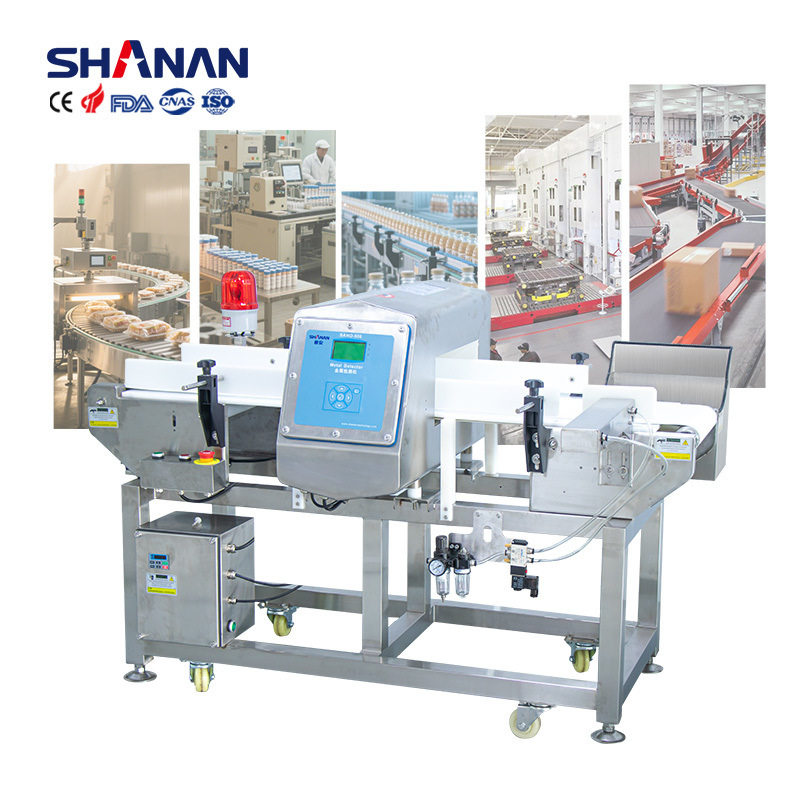

In stock Digital Conveyor Metal Detector Food Safety / Medicine / Apparel Industry conveyor belt
High Precision Automatic Food Metal Detector Imported New Upgraded Food Metal Detection Equipment Needle Metal Detector
Metal detector can be used in food, pharmaceutical, chemical,textile and garment, toy industry and so on, which is authorized by HACCP(food industry), GMP(pharmaceutical industry), and it can be applied for cookies, sauces, dumpling, hum, soup, candy, meat, frozen food, salted food, fast food, bakery etc, and other industries that have special requirements on detection sensitivity, anti-interference, waterproof. Besides, it can detect broken needles, metals mixed with products.
Features:
1. Adopt the theory of balance, more reliable;
2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.
3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.
4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.
5. Large D display with Chinese & English language and so on; Consumer can choose according to their needs.
6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.
7. It can store more than 100 kinds of testing data of products.
8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.
Application:
Specification:
Model | SAMD-500 | ||||||
Detected products Height | 80 | 120 | 80 | 100 | 120 | 150 | 200 |
Detected products Width | 300 | 300 | 400 | 400 | 400 | 400 | 400 |
Belt Width | 250 | 250 | 350 | 350 | 350 | 350 | 350 |
Belt length | 1500 | ||||||
Detector sensitivity |
Feф0.5 | FeФ0.8 | FeФ0.6 | FeФ0.7 | FeФ0.8 | FeФ0.8 | FeФ1.0 |
SUSф1.0 | SUSФ1.5 | SUSФ1.0 | SUSФ1.2 | SUSФ1.5 | SUSФ2.0 | SUSФ2.3 | |
N-Feф0.8 | N-FeФ1.0 | N-FeФ0.8 | N-FeФ1.0 | N-FeФ1.2 | N-FeФ1.5 | N-FeФ1.5 | |
Speed of belt | 27M/min (can adjust 5-40 M/min) | ||||||
Load ability | 20KG | ||||||
Count | 100 | ||||||
Reject Ways | Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods ) | ||||||
Application | Non-package ,plastic package ,paper bag or box (non-metallic) product | ||||||
Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
Company information:
we are a professional metal detector manufacturer.
we accept kinds of metal detector customized.
